Product Introduction

The principle of DJG single screw extruder dehydration is to use variable pitch spiral blades to generate compression ratio, squeeze out the moisture in the wet material, and separate the moisture through a filter with a certain aperture.

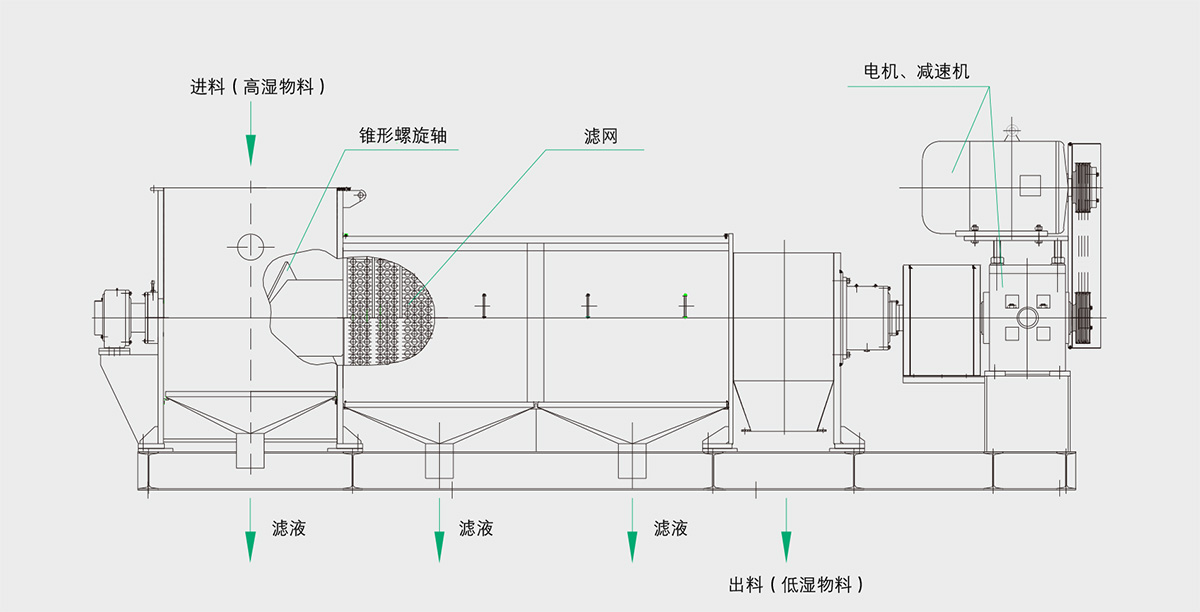

This machine consists of a body, a screw shaft, a filter screen, and a transmission mechanism. The parts in contact with the material are all made of stainless steel material. After using this machine, it provides ideal energy-saving conditions for the final drying of wet materials.

Product Features

High compression ratio, good dehydration effect, low discharge moisture

Compact overall structure and small footprint

Smooth operation without vibration, easy operation and maintenance

Can be continuously produced

Application scope

It is widely used in industries such as chemical, light industry, food, and agricultural and sideline products, especially in the starch and alcohol industries. Squeezing and dehydrating wet materials with high moisture content such as corn germ, corn fiber, potato fiber, and alcohol greatly reduces the energy consumption of subsequent drying.

product mix

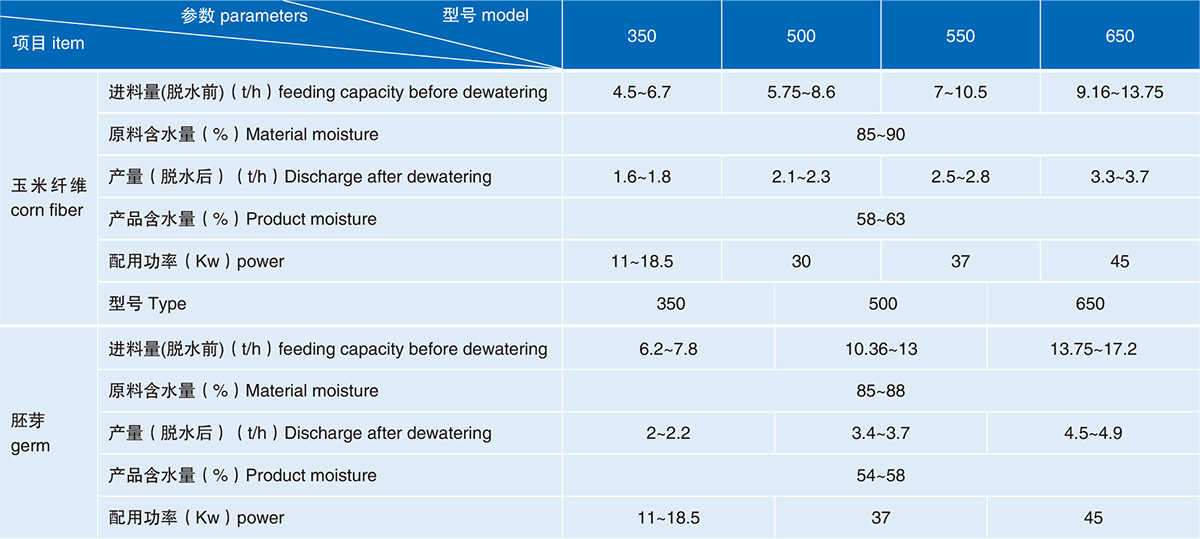

Main specifications and technical parameters
