Product Introduction

The GZG type tube bundle dryer is an indirect contact drying equipment, which consists of a fixed shell with a movable heating tube bundle with a shovel inside. Steam enters the heat exchange tube through the rotary joint and releases heat, then becomes condensed water and is discharged. The material is lifted by the rotating shovel inside the bundle dryer and evenly falls onto the surface of the heat exchange tube. The moisture of the material is heated outside the heat exchange tube and turned into steam, which is discharged by the dehumidification fan. The dried material is pushed by the shovel to the discharge port and then discharged.

Product Features

Wide range of dry materials

Good energy-saving performance

High water evaporation capacity and continuous production capability

Dry under negative pressure, no dust leakage, no dust in the workshop, hygienic and safe

High degree of automation, automatic control of steam inlet volume, fan speed, anti blocking detection and alarm of the winch, operation status alarm and interlock of the host and winch

Application scope

Tube bundle dryers are widely used for drying loose wet materials in industries such as chemical, light industry, food, and feed (e.g. DDGS for distiller's grains feed).

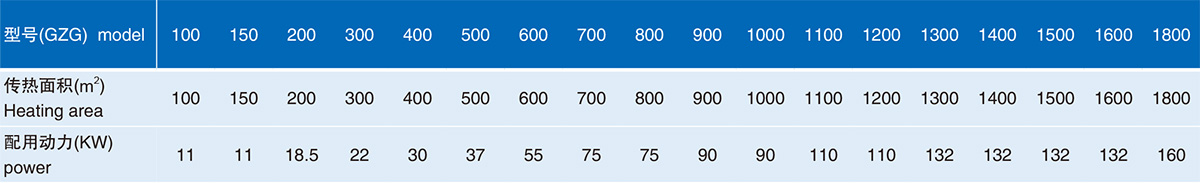

Technical parameters and models

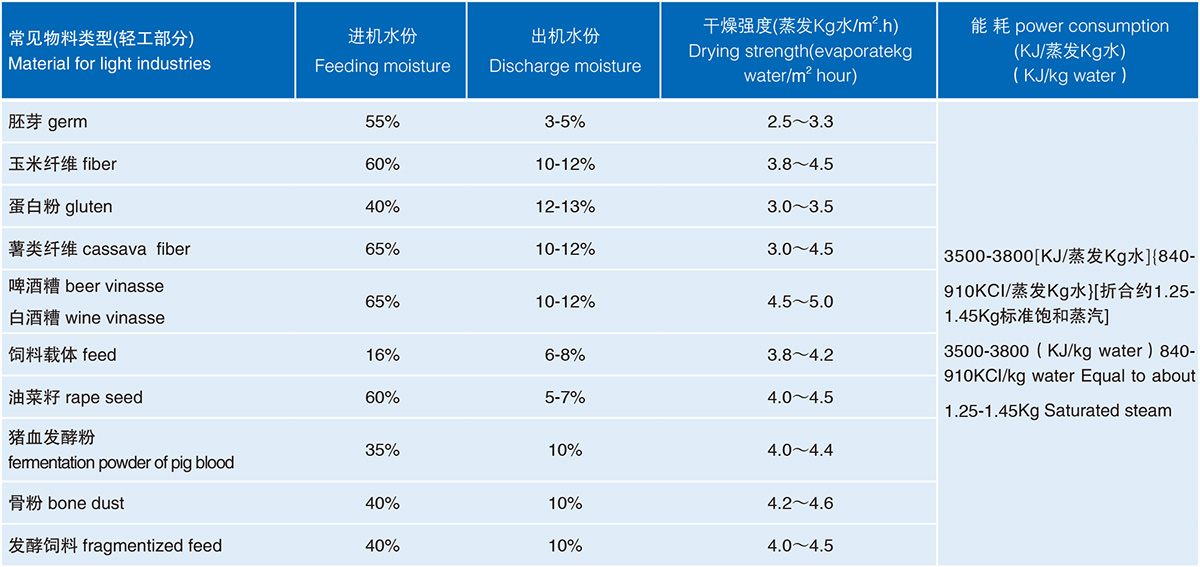

Common dry materials and parameters
